Metal Transition





A collection of thoughtfully designed metal profiles that bring durability, protection and a refined finishing touch to flooring transitions and exposed edges.





tablet/mobile Version

Metal Transition





A collection of thoughtfully designed metal profiles that bring durability, protection and a refined finishing touch to flooring transitions and exposed edges.





Five Profiles. Four Finishes. Endless Possibilities.

Backed by a 5-Year Warranty

Finish Options

Silver


00001

Sand







00002




Bronze







00003



Black







00004



Desktop Version

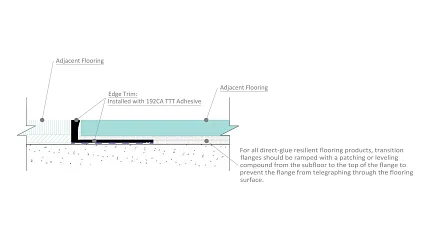

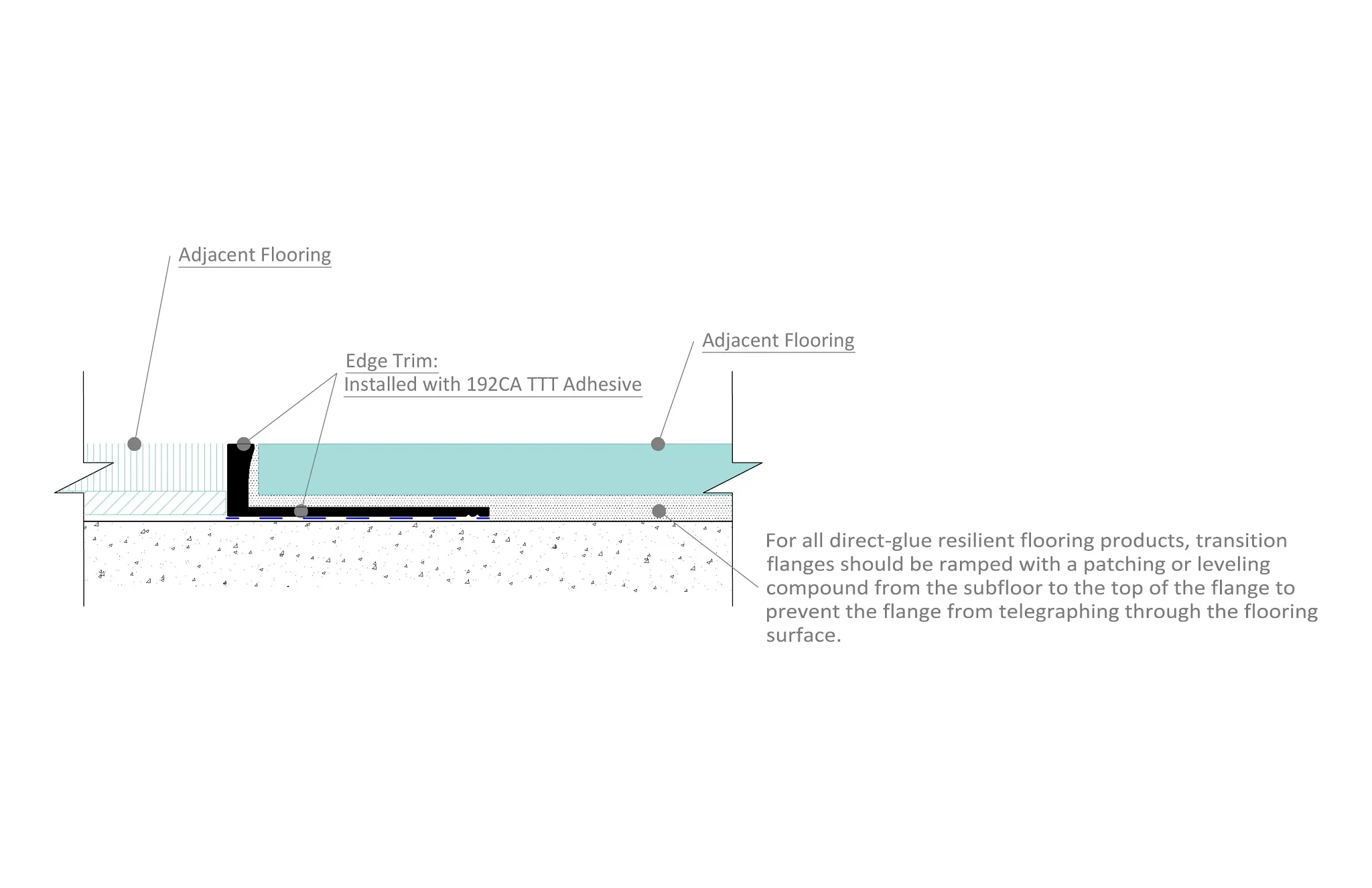

Diagram of direct-glue resilient flooring installation with edge trim

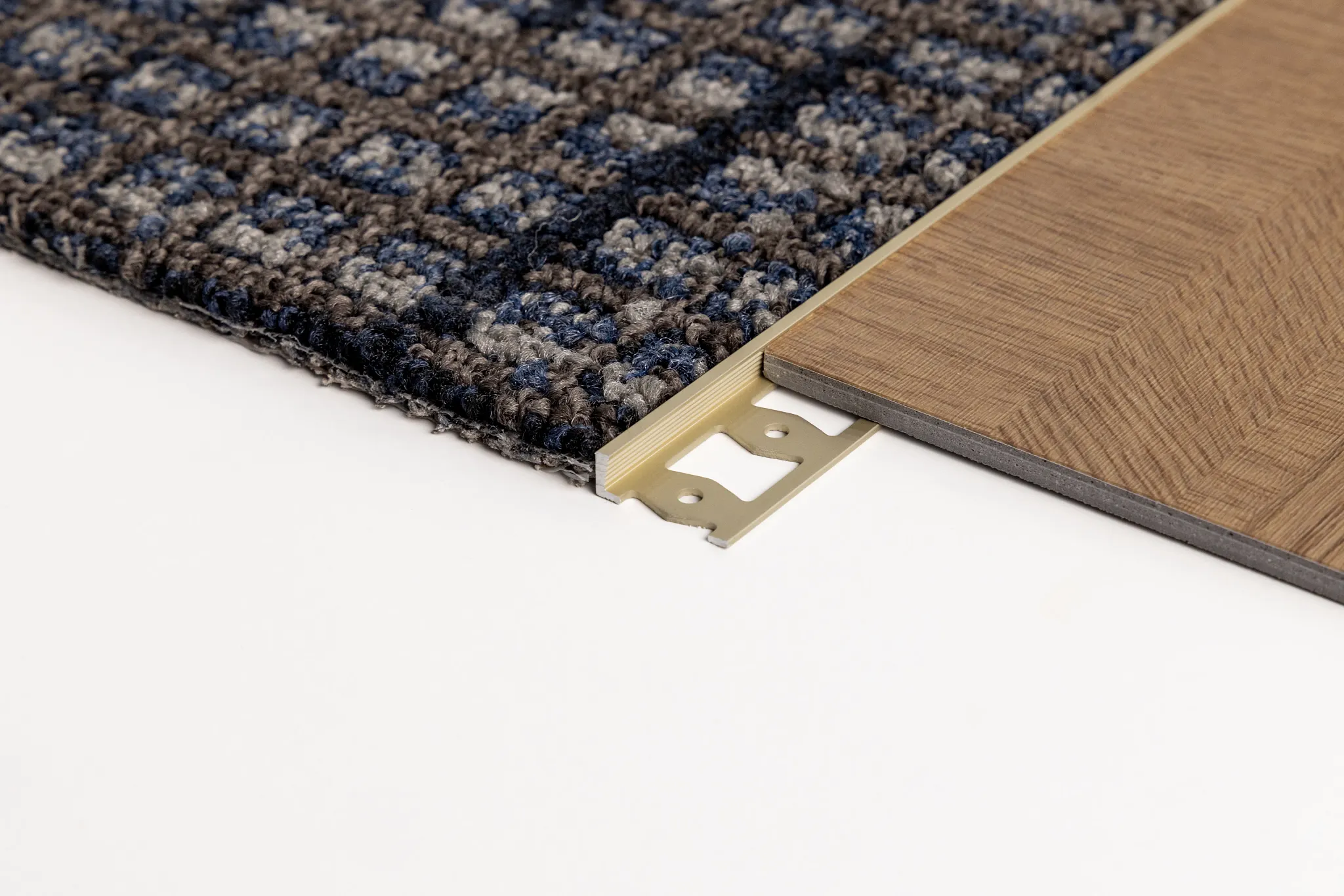

Edge Trim








This Edge Trim is designed to provide a clean, finished edge where flooring terminates against an adjacent surface, exposed edge, sliding door or threshold.









tablet/mobile Version

Diagram of direct-glue resilient flooring installation with edge trim

Edge Trim








This Edge Trim is designed to provide a clean, finished edge where flooring terminates against an adjacent surface, exposed edge, sliding door or threshold.

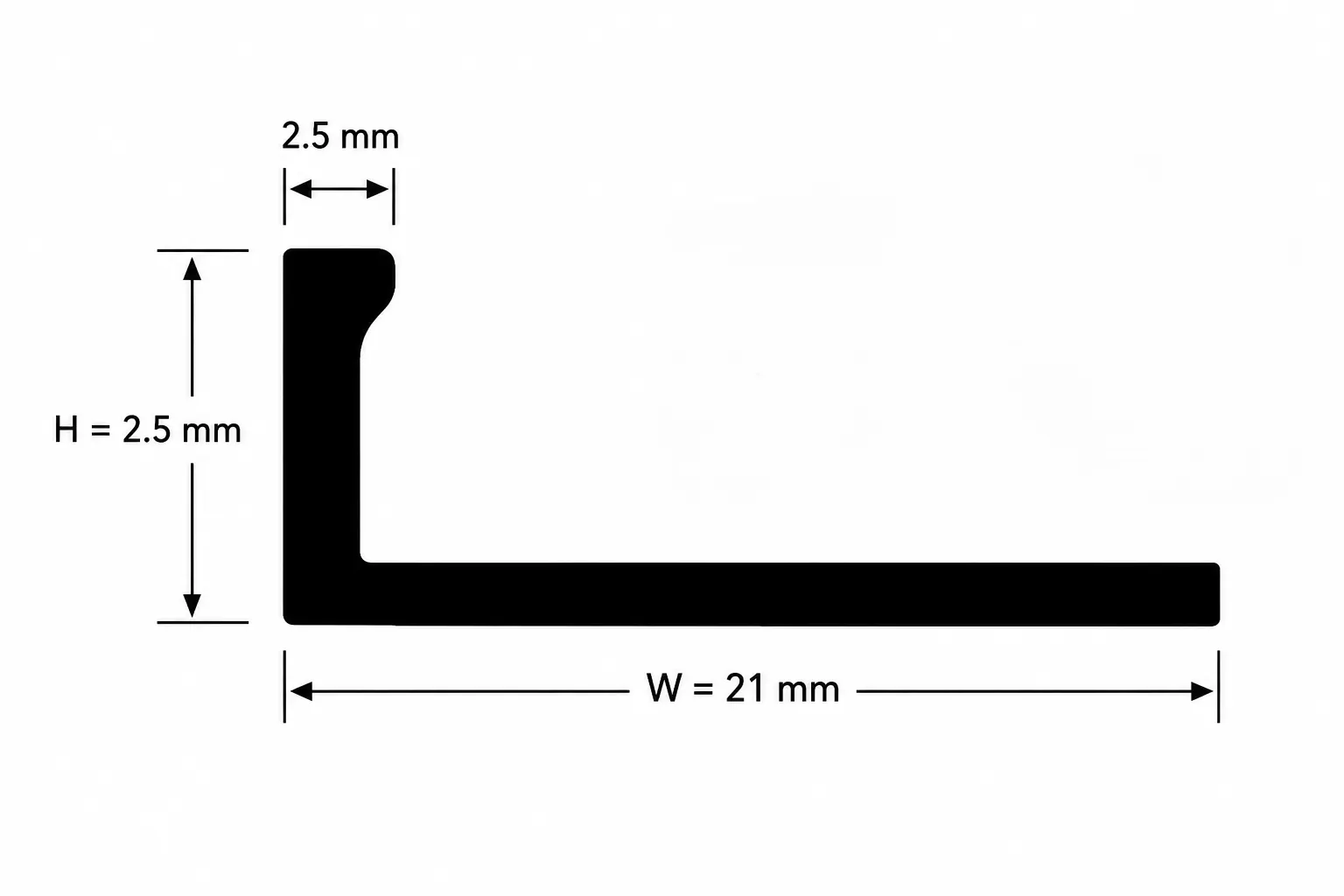

Flooring profile with dimensions 2.5 mm height and 21 mm width

2.5mm Edge Trim




333CA | Silver, Sand, Bronze

334CA | Black

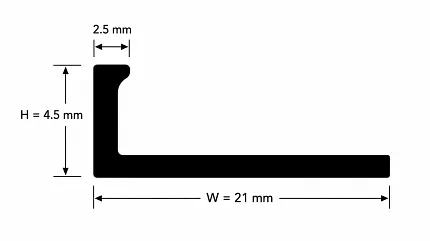

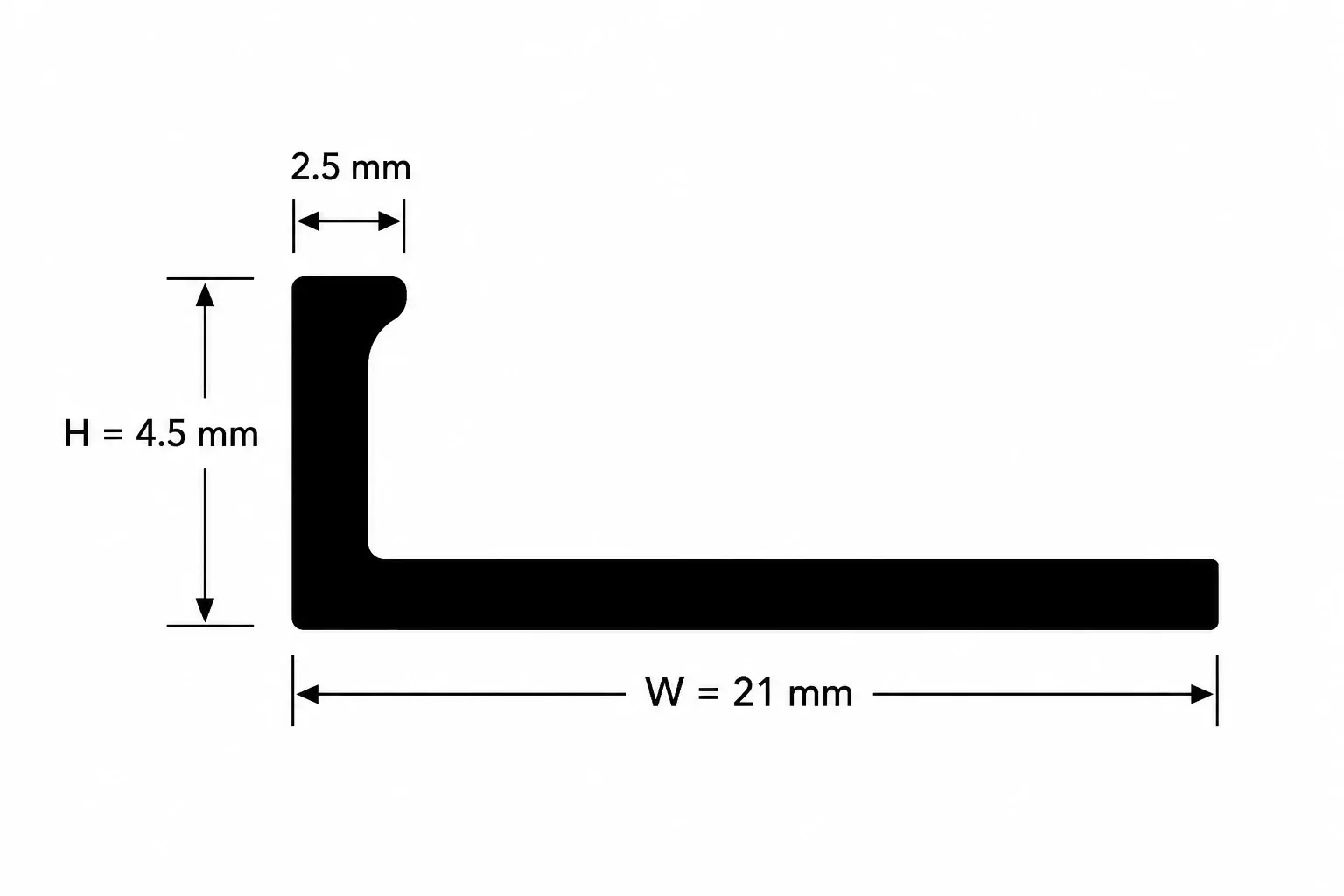

Flooring profile dimensions with 4.5 mm height and 21 mm width

4.5mm Edge Trim







335CA | Silver, Sand, Bronze

336CA | Black

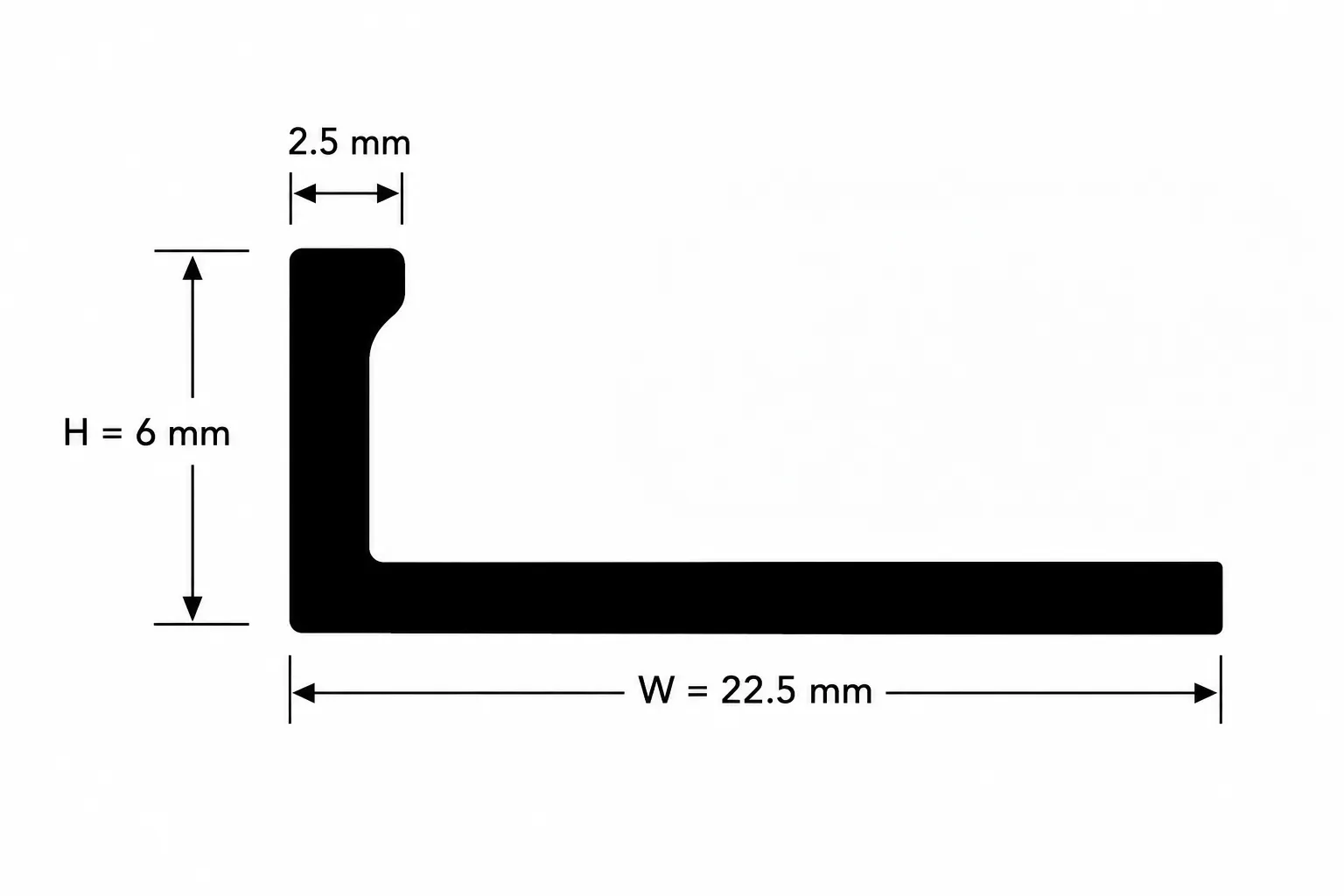

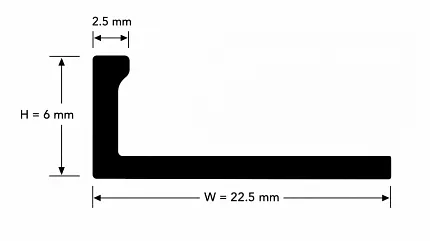

Diagram of flooring profile with dimensions 22.5 mm width and 6 mm height

6mm Edge Trim







337CA | Silver, Sand, Bronze

338CA | Black








Desktop Version

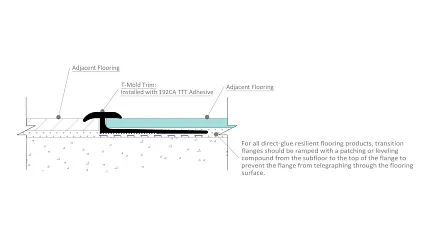

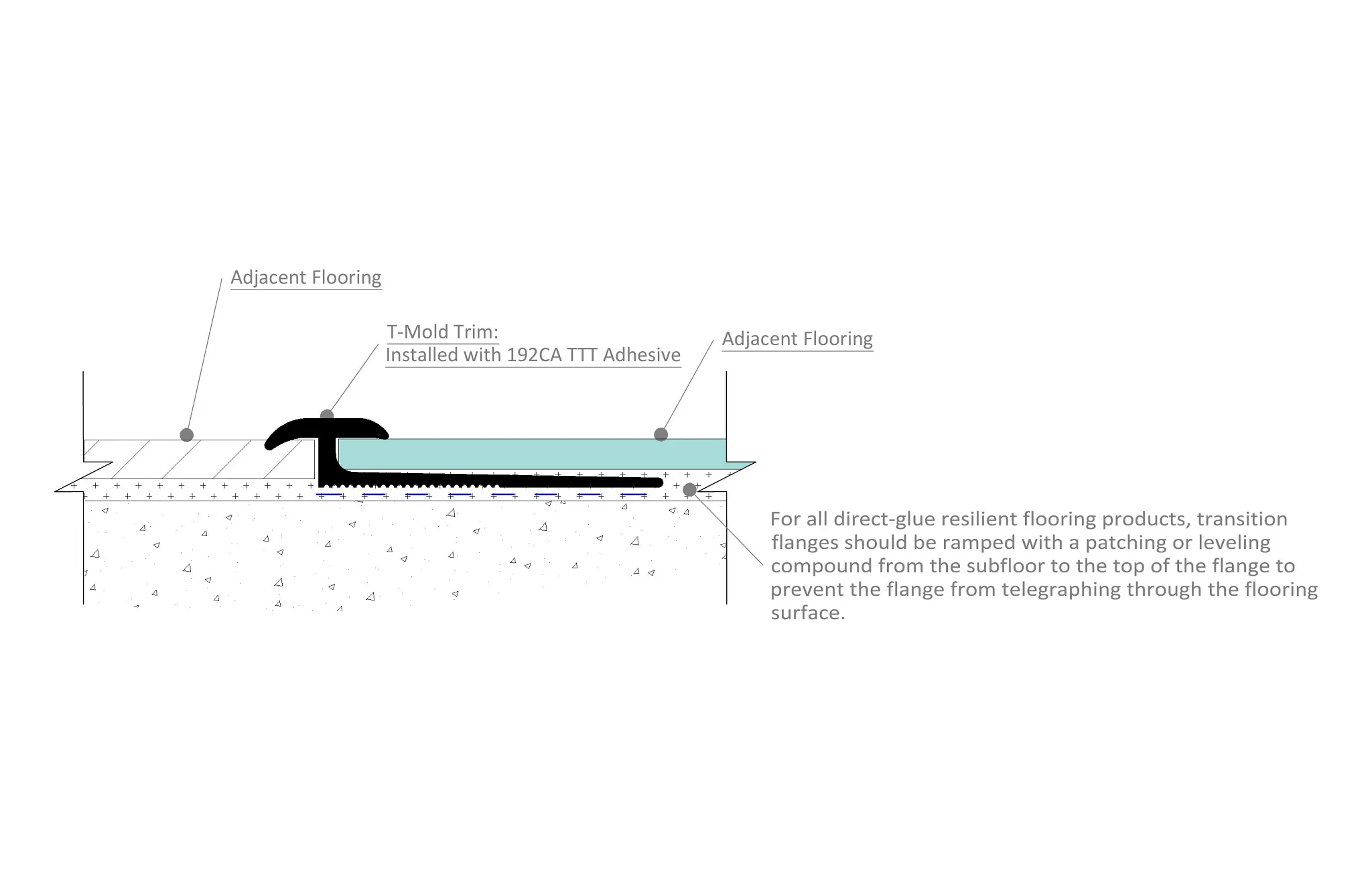

Diagram of T-Mold Trim installation with adhesive for resilient flooring

T-Mold Trim











T-Mold Trim is designed to transition between adjacent flooring surfaces of similar heights while allowing for expansion and contraction.

tablet/mobile Version

Diagram of T-Mold Trim installation with adhesive for resilient flooring

T-Mold Trim











T-Mold Trim is designed to transition between adjacent flooring surfaces of similar heights while allowing for expansion and contraction.

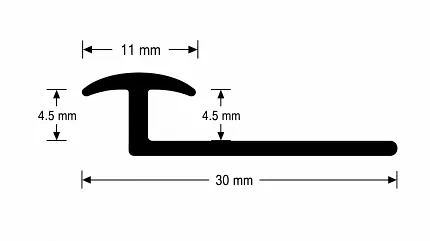

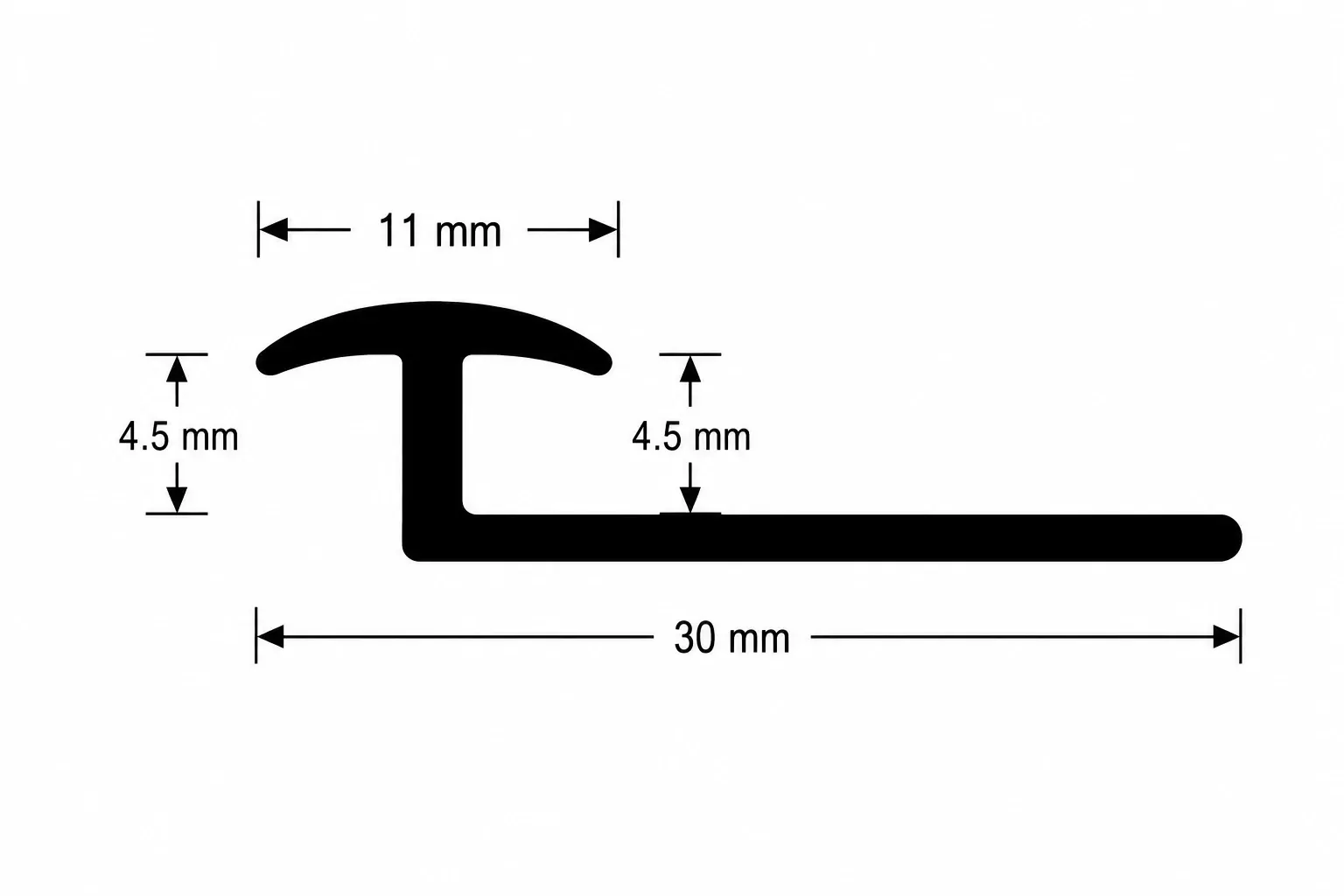

Flooring transition strip dimensions 11x30 mm

4.5mm T-Mold Trim









349CA | Silver, Sand, Bronze

350CA | Black

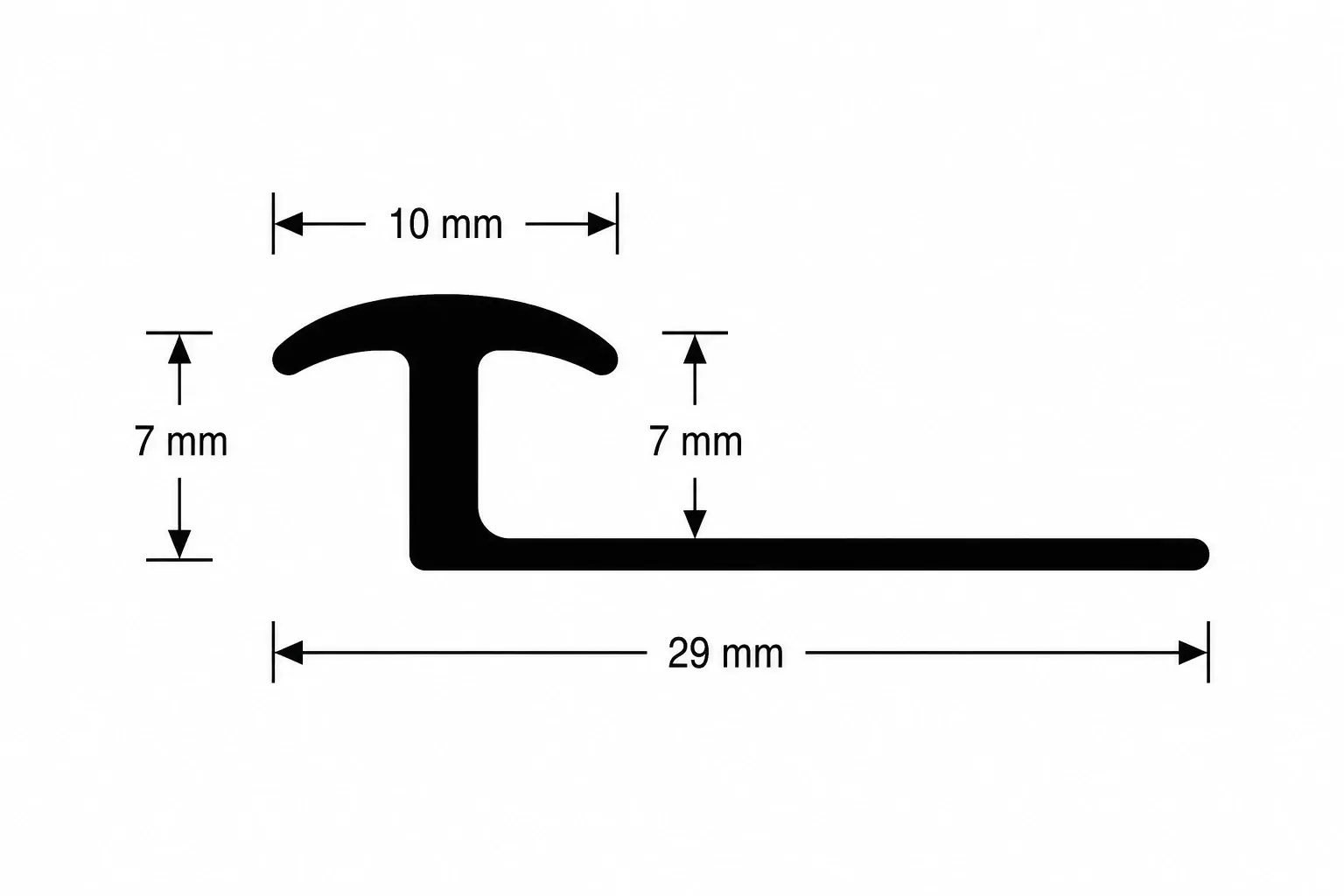

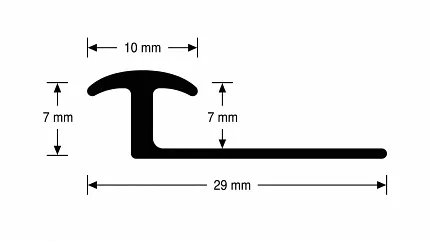

Flooring profile diagram with dimensions 10x7x29 mm

7mm T-Mold Trim












351CA | Silver, Sand, Bronze

352CA | Black











Desktop Version

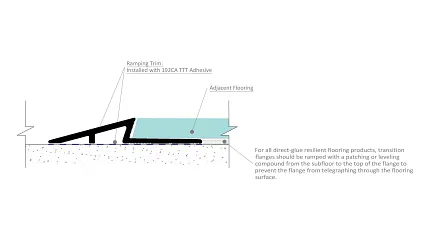

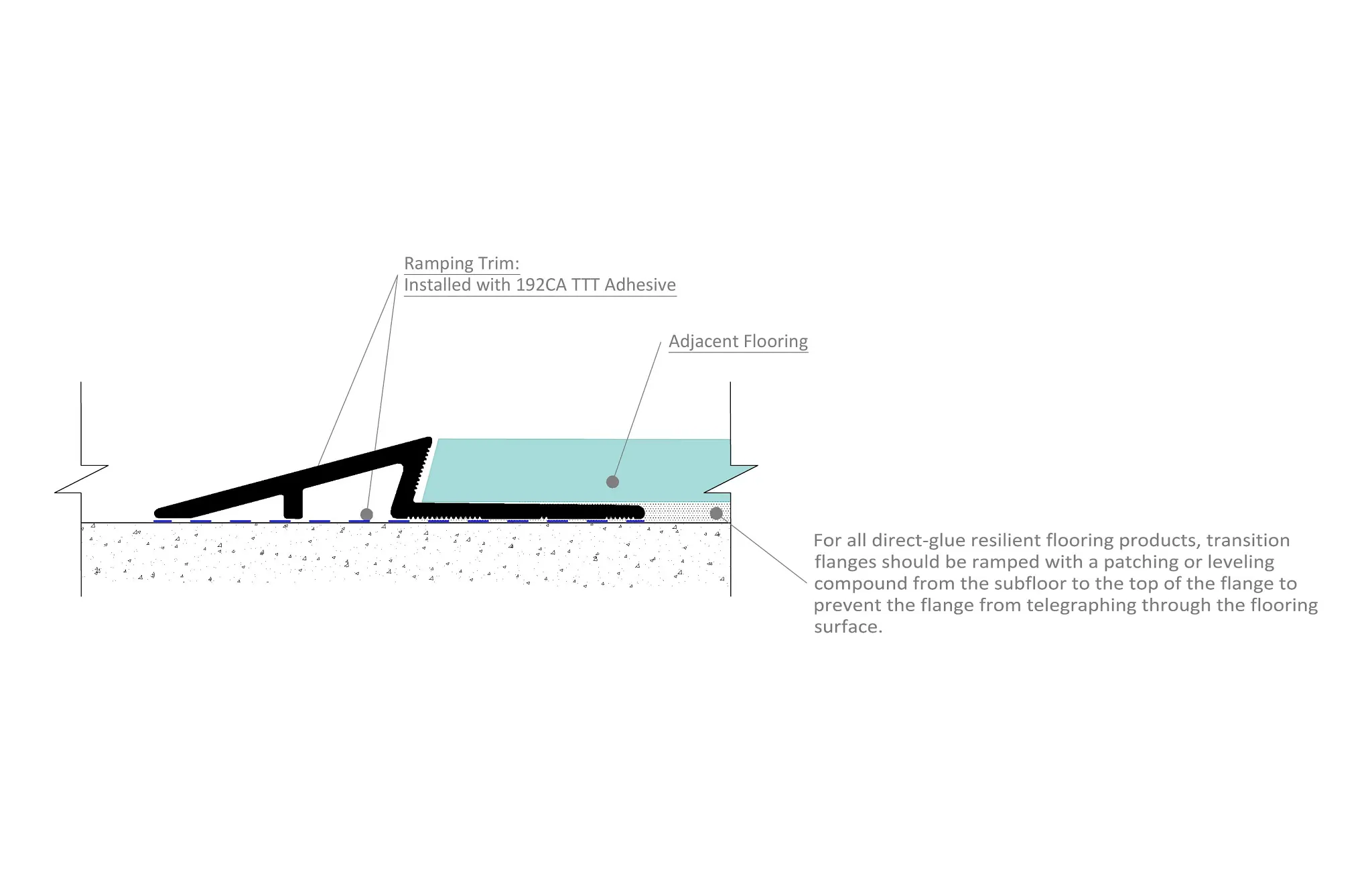

Diagram of ramping trim installation with adhesive for resilient flooring

Ramping Trim

Ramping Trim is designed to create a gradual transition between flooring surfaces of different heights, helping to reduce trip hazards while providing a clean, finished appearance.



tablet/mobile Version

Diagram of ramping trim installation with adhesive for resilient flooring

Ramping Trim

Ramping Trim is designed to create a gradual transition between flooring surfaces of different heights, helping to reduce trip hazards while providing a clean, finished appearance.

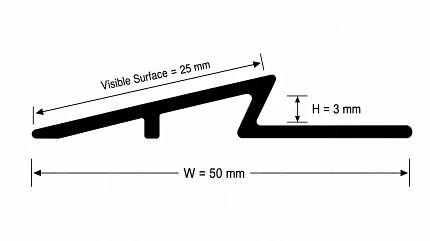

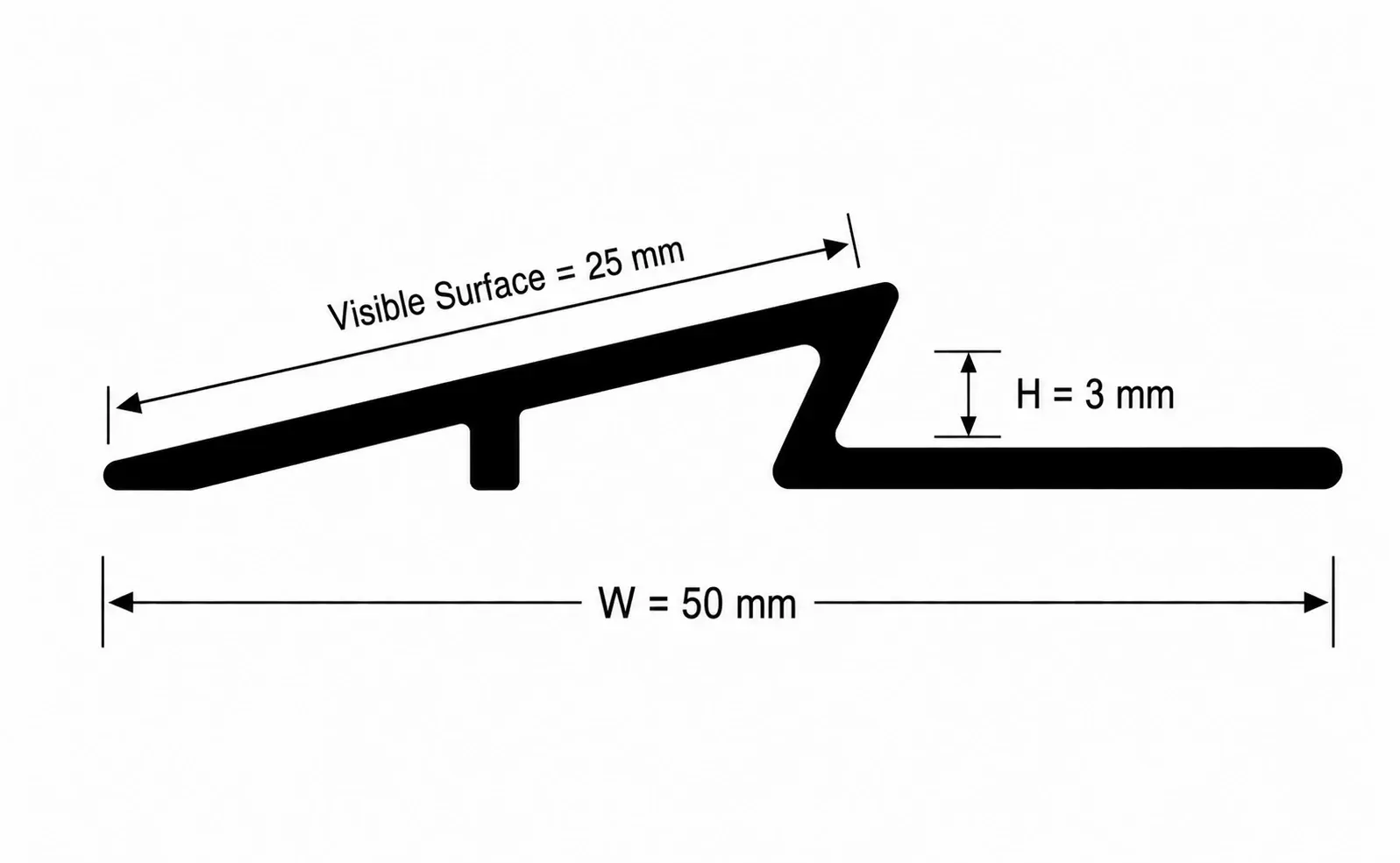

Flooring profile diagram with dimensions 50 mm width and 3 mm height

3mm Ramping Trim









339CA | Silver, Sand, Bronze

340CA | Black

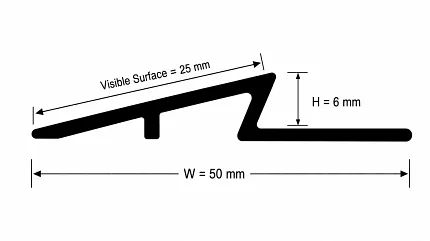

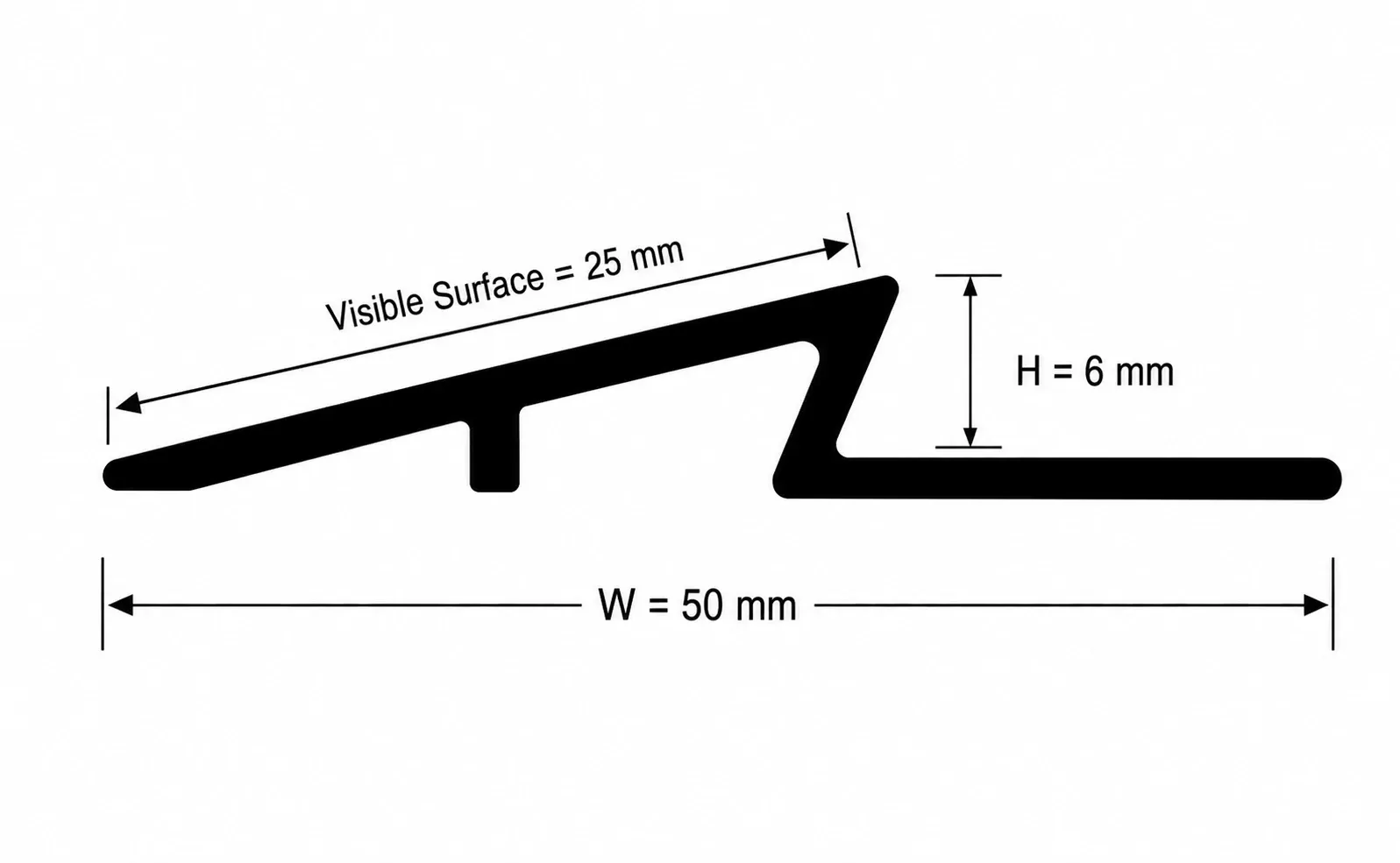

Diagram of flooring profile with dimensions 50x6 mm

6mm Ramping Trim












341CA | Silver, Sand, Bronze

342CA | Black











Desktop Version

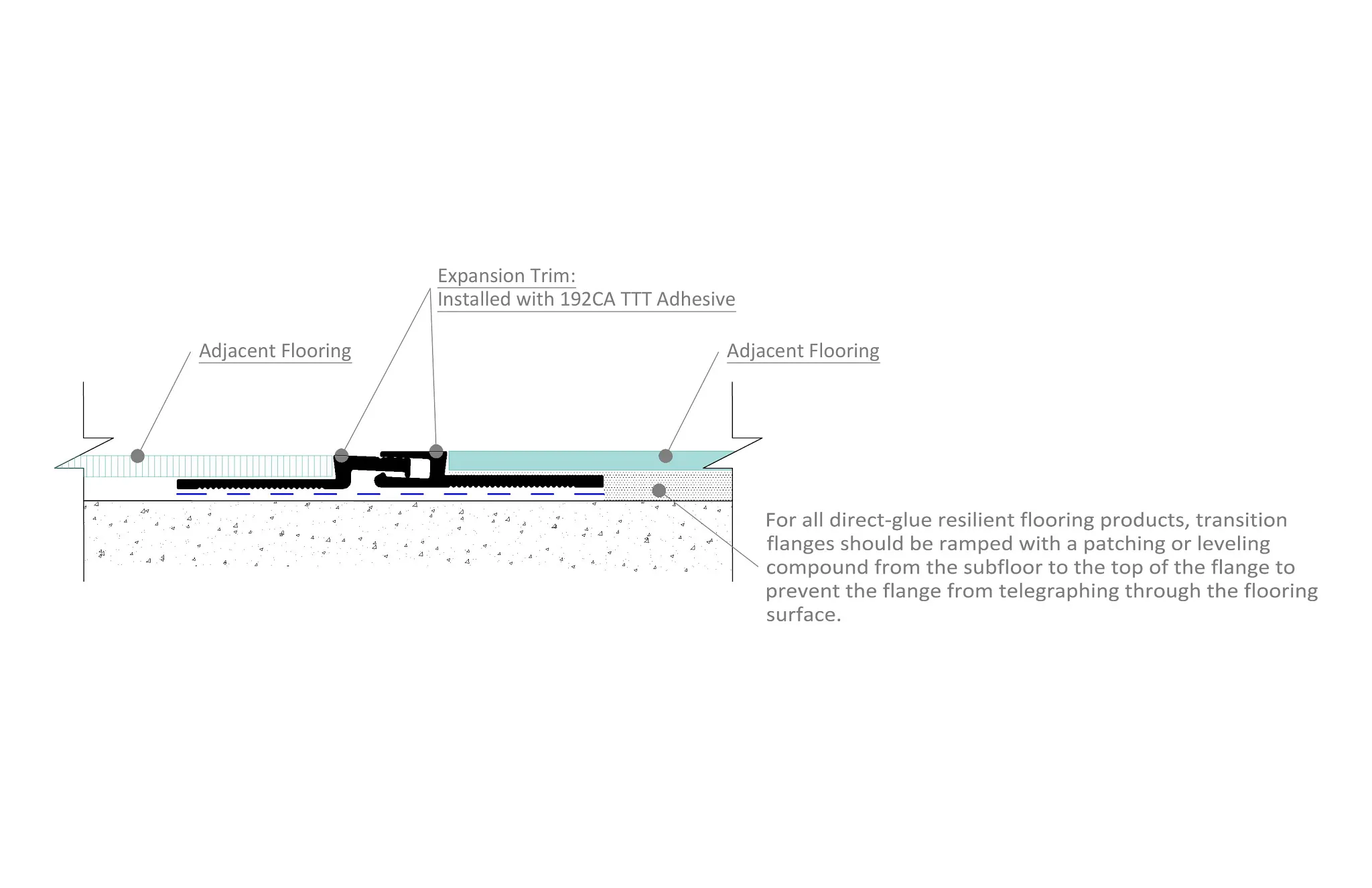

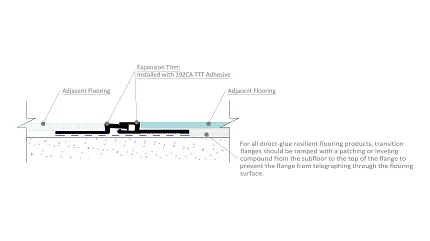

Diagram of expansion trim installation with adjacent flooring

Expansion Joint Trim











Expansion Joint Trim is designed to allow movement in the slab while creating a clean, finished transition between adjacent flooring surfaces.

tablet/mobile Version

Diagram of expansion trim installation with adjacent flooring

Expansion Joint Trim











Expansion Joint Trim is designed to allow movement in the slab while creating a clean, finished transition between adjacent flooring surfaces.

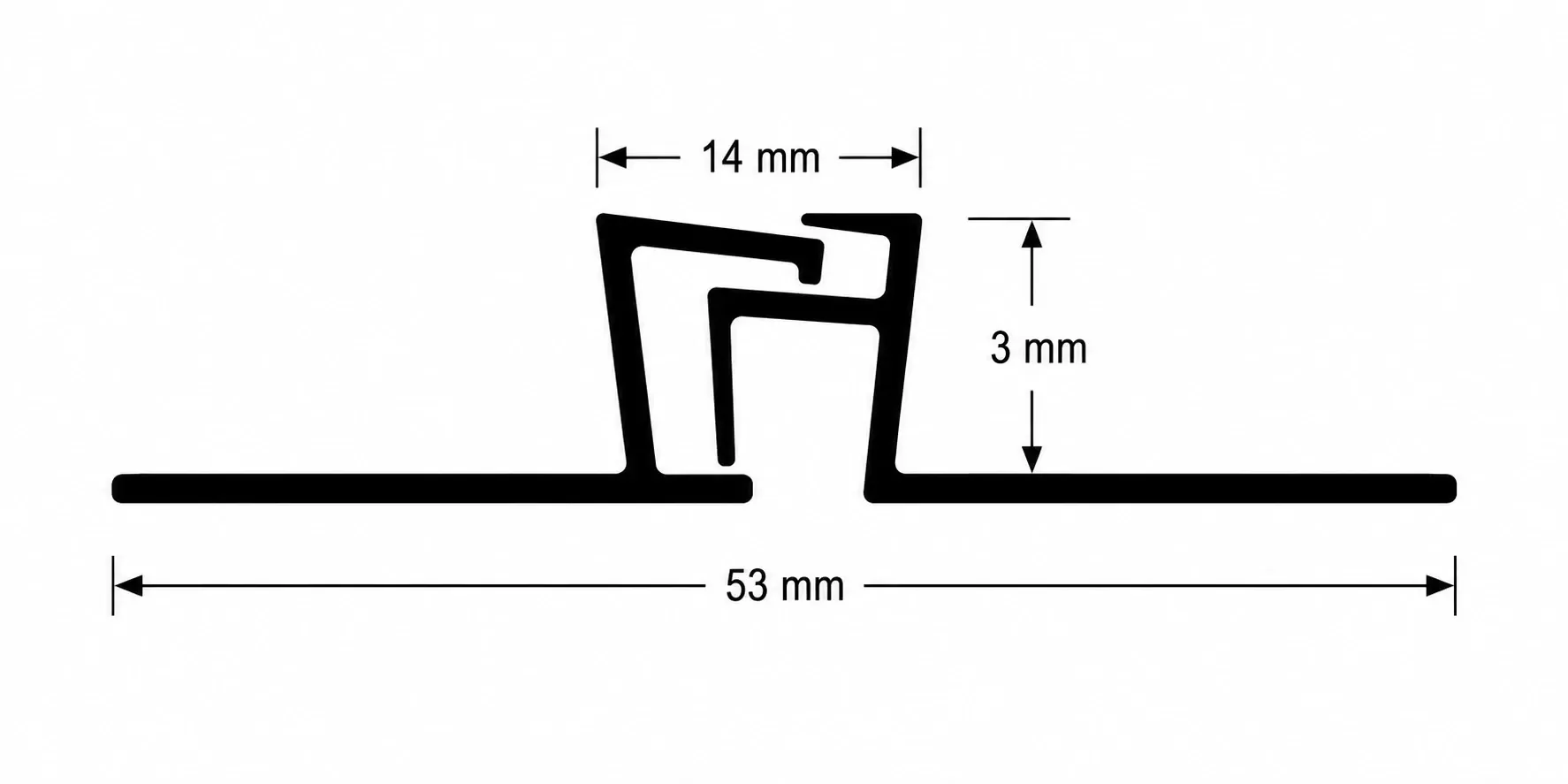

Diagram of flooring profile with dimensions 53 mm x 14 mm x 3 mm

3mm Expansion Joint Trim












347CA | Silver, Sand, Bronze

Black 00004 Not Available

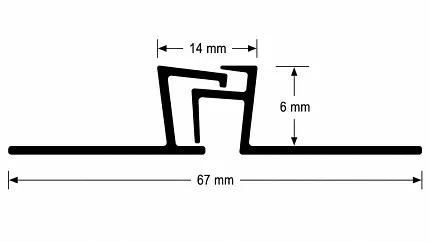

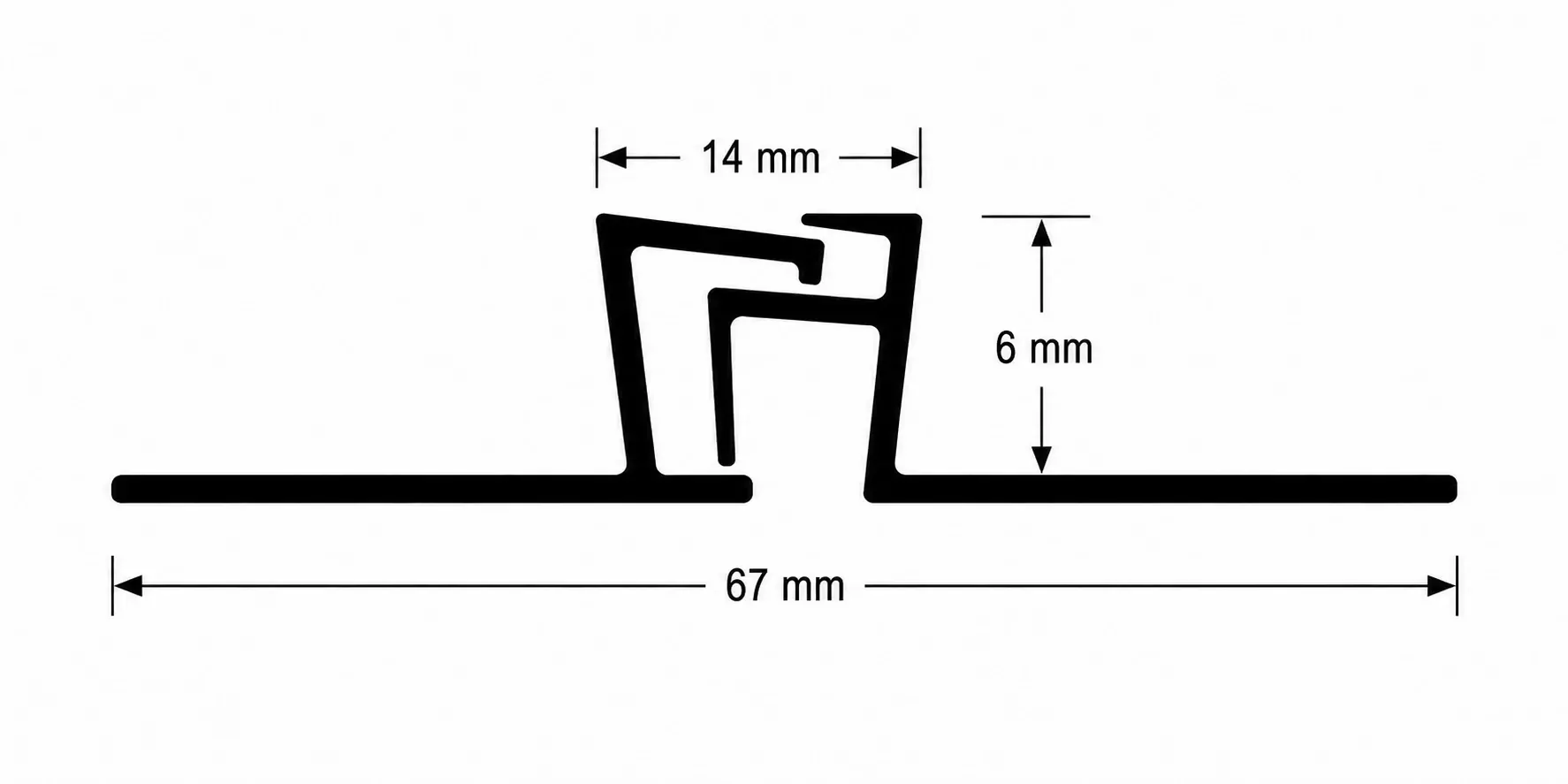

Flooring profile diagram with dimensions 67x14 mm

6mm Expansion Joint Trim















348CA | Silver, Sand, Bronze

Black 00004 Not Available











Desktop Version

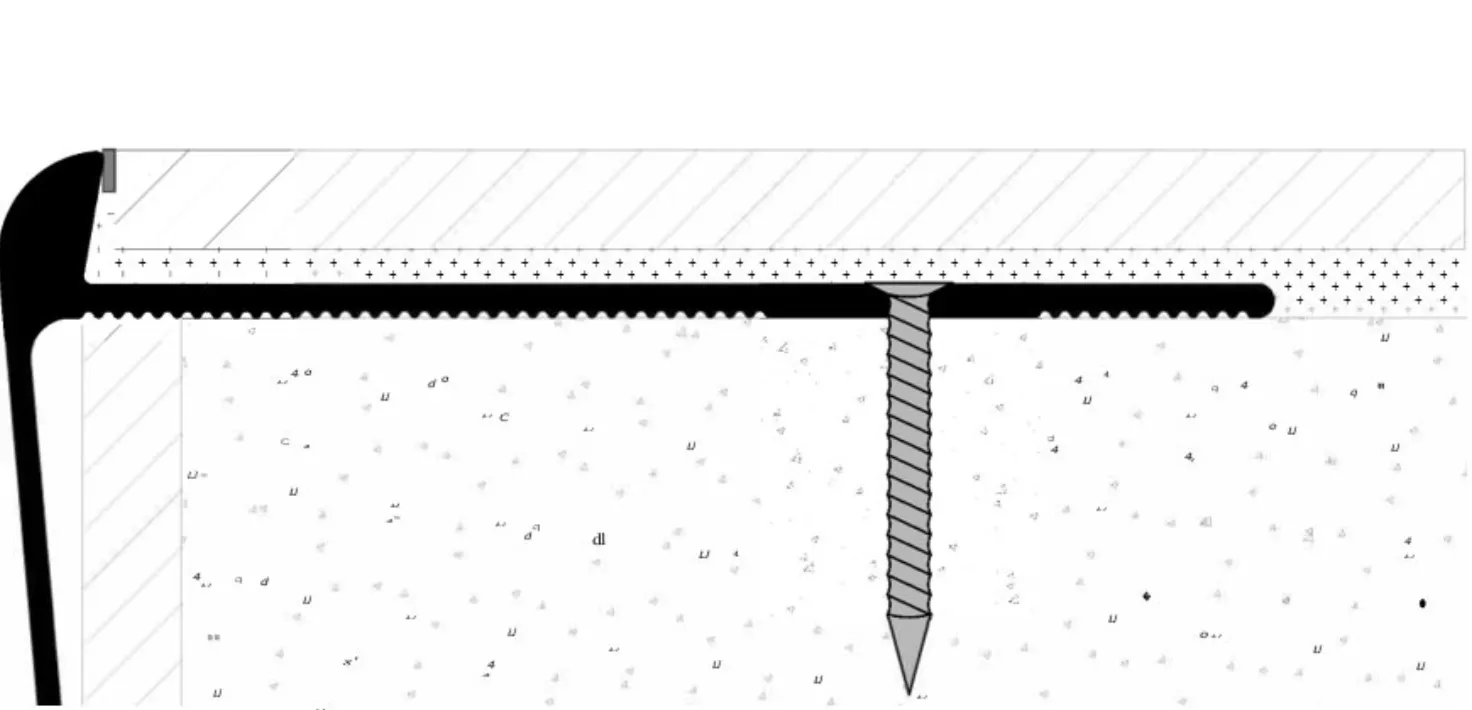

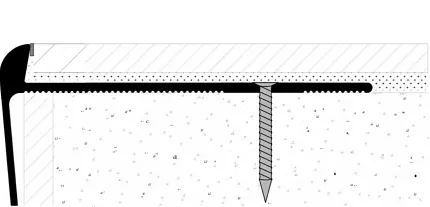

Cross-section diagram of flooring installation with screw

Stair Nosing











Stair Nosing Trim is designed to provide a clean, finished edge on stair treads while enhancing durability and helping protect against wear in high-traffic environment.












tablet/mobile Version

Cross-section diagram of flooring installation with screw

Stair Nosing











Stair Nosing Trim is designed to provide a clean, finished edge on stair treads while enhancing durability and helping protect against wear in high-traffic environment.

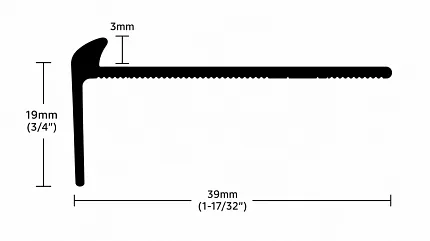

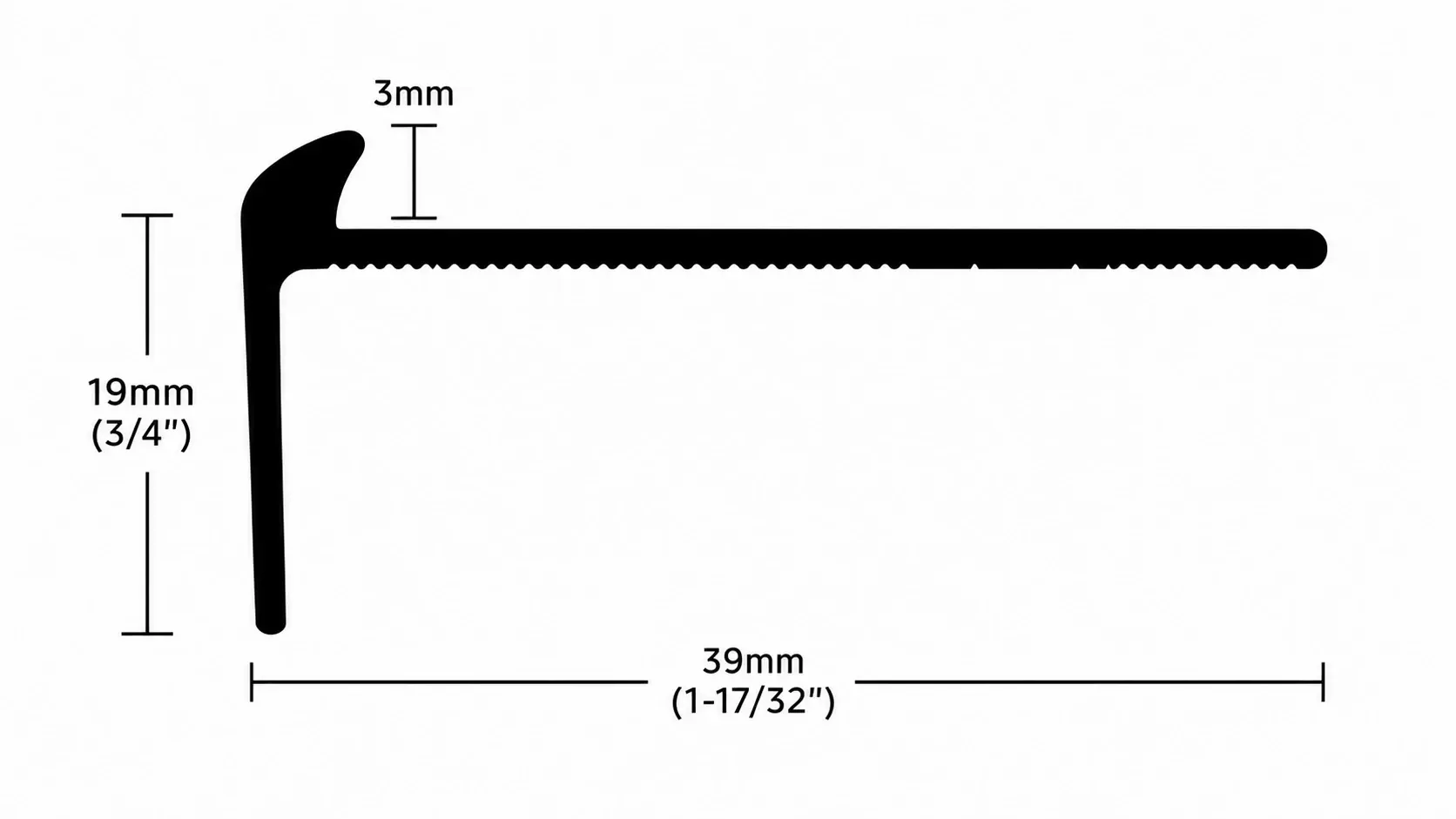

Flooring profile with dimensions 19x39 mm

3mm Stair Nosing









343CA | Silver, Sand, Bronze

344CA | Black

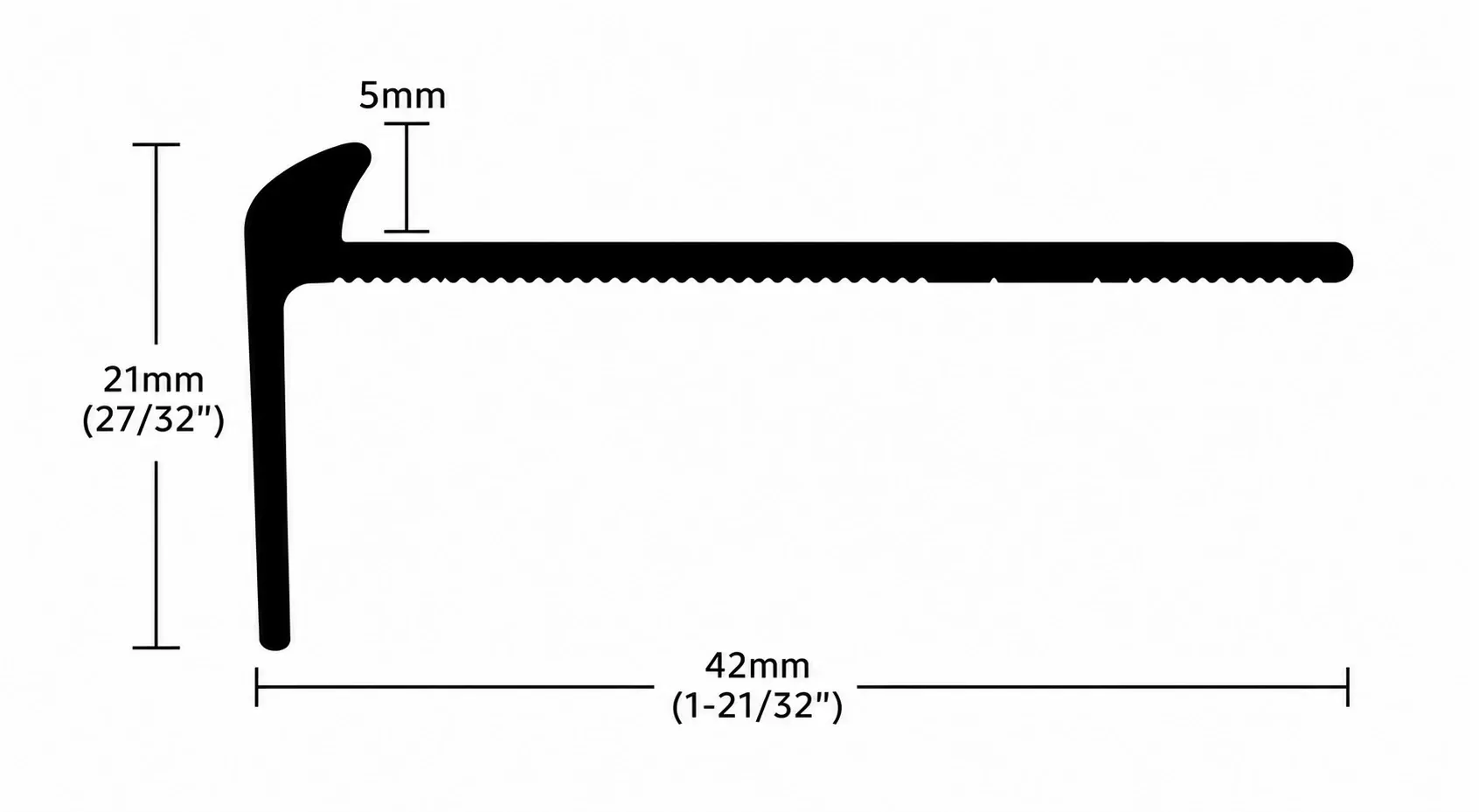

Diagram of flooring profile with dimensions 42mm x 21mm

5mm Stair Nosing












345CA | Silver, Sand, Bronze

346CA | Black
