Cushion and Underlayment
Cushion and underlayments can drastically improve commercial environments by increasing underfoot comfort, changing the acoustic soundscape, lowering leg fatigue and reducing the impact of slips and falls. Shaw Contract offers cushion and underlayment solutions for every project and price point.
Resilient
Hush III 3mm Cork
214DE
100% Natural Cork Underlayment
Good | Better | Best
- Installation: Single glue Hush III and float LVT/LVP or double glue
- Approved Adhesives: All Shaw Contract resilient adhesives
Weight 42 lbs./roll | 19.05 kg
Thickness 0.118" | 3 mm
Density 42 lbs. | 19.05 kg
Roll Size 42" x 80'
1.02 x 24.38 m
ft2/Roll 200 ft2
Traffic Class Class I - Moderate
Warranty Limited Warranty

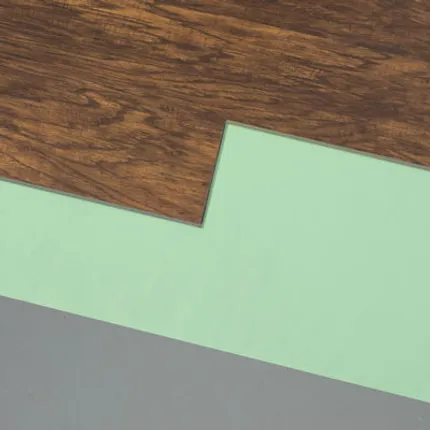

GroundWorks
087VS 100 sf roll | 351VS 450 sf roll
Acoustical Underlayment
Good | Better | Best
- Installation: Loose-lay GroundWorks and float LVT/LVP or double glue
- Approved Adhesives: All Shaw Contract resilient adhesives
087VS
Weight 14 lbs./roll | 6.35 kg
Thickness 0.055" | 1.4 mm
Density 13 lbs.
Roll Size 3' x 33' 4"
0.91 x 10.15 m
ft2/Roll 100 ft2
Traffic Class Class I - Moderate
Warranty Limited Warranty
Broadloom

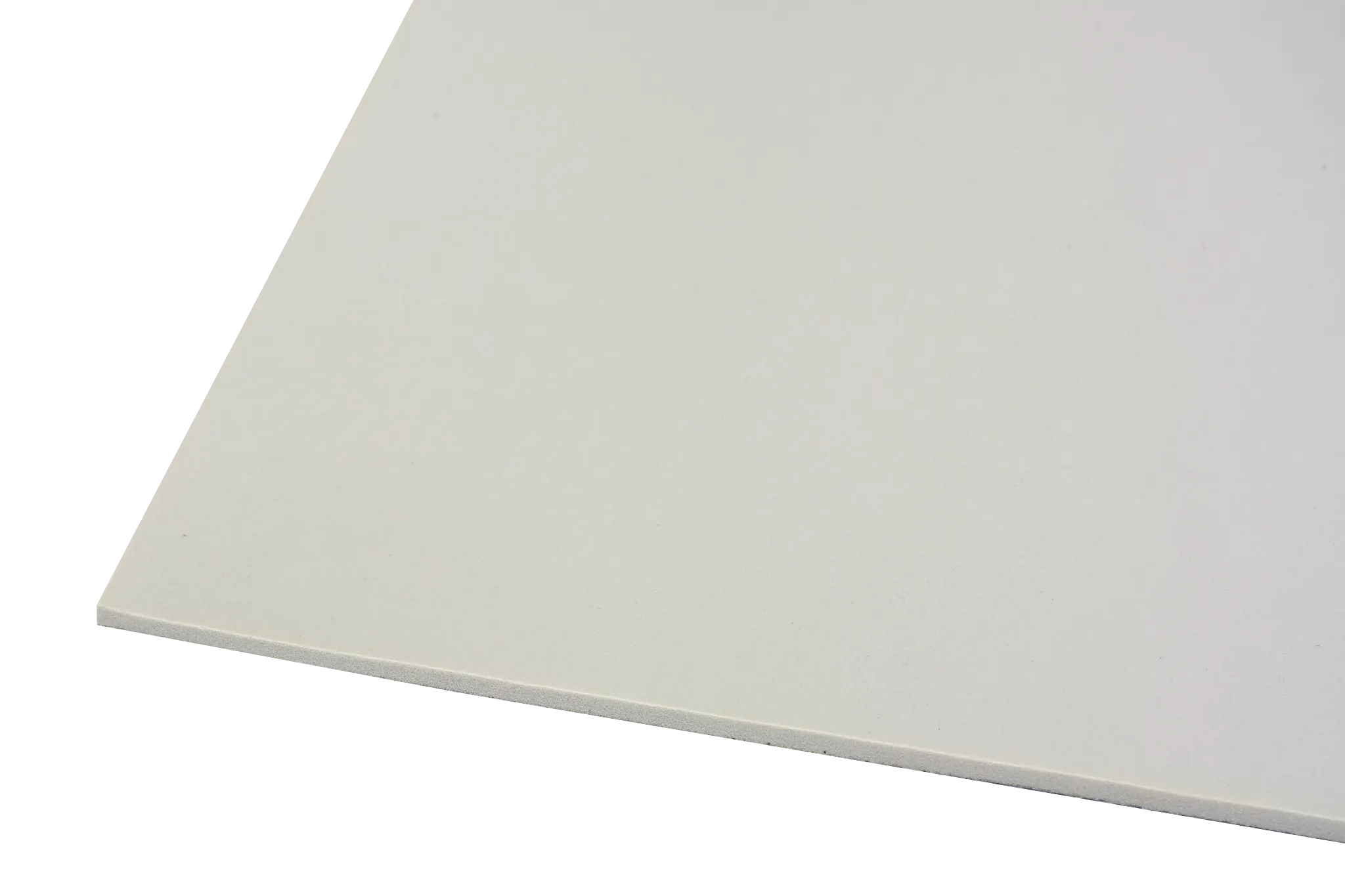

Duraworx
DW204 Broadloom
Commercial Urethan Carpet Cushion
Good | Better | Best
- Go-to cushion for virtually any commercial installation (stretch-in, double glue broadloom)
- Class III extra heavy traffic rating for stairs and roller traffic
- Breathable moisture barrier and antimicrobial content
- When adhering Duraworx to substrate: use 1000 Broadloom, Indoor-Outdoor 3800 or 4152
- When adhering Broadloom to Duraworx: use 1000 Broadloom or Indoor-Outdoor 3800

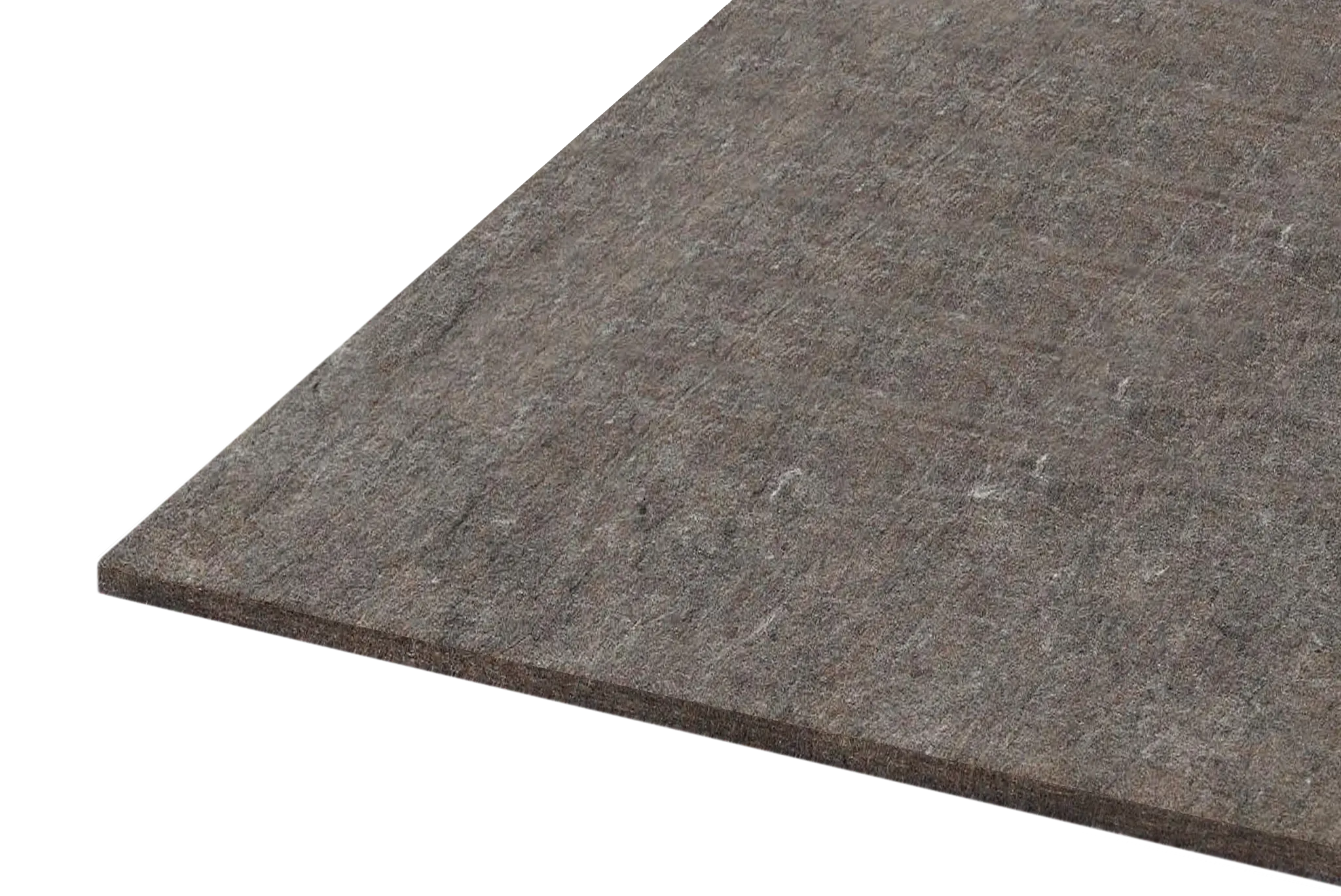

DS-34 Doublestick Cushion
034FS
Synthetic Fiber Cushion
Good | Better | Best
- Installation: Double glue installation
- When adhering cushion to substrate, use 1000 Broadloom or Indoor-Outdoor 3800
- When adhering broadloom to cushion, us 1000 Broadloom or Indoor-Outdoor 3800
Weight 34 oz
Thickness 0.3125"
Density 48.5 lbs./ft3
Roll Size 6' x 60'
1.02 x 24.38 m
yd2/Roll 40 yd2
Traffic Class Class II - Heavy
Warranty Limited Warranty
Fiber Touch
Premium Recycled Synthetic Fiber Cushion
Good | Better | Best
Style
Weight
Thickness
Density
Roll Size
yd2/Roll
Traffic Class
Warranty
Radiant Panel
Green Label Plus
Cradle to Cradle
Installation: Stretch-In installation with broadloom products
Premium blend of synthetic fiber provides long-lasting support in high-traffic areas
206FT 246FT 286FT 326FT 410FT
20 oz 24 oz 28 oz 32 oz 40 oz
0.235" 0.25" 0.30" 0.3125" 0.35"
7 lbs./ft3 8 lbs./ft3 8 lbs./ft3 8.5 lbs./ft3 9.5lbs./ft3
6' x 60' 6' x 60' 6' x 60' 6' x 60' 6' x 60'
40 40 40 40 40
Class I Class I Class II Class II Class III
10 Year 10 Year 10 Year 10 Year 10 Year
Class I Class I Class I Class I Class I
GLP012 GLP012 GLP012 GLP012 GLP012
Bronze Bronze Bronze Bronze Bronze

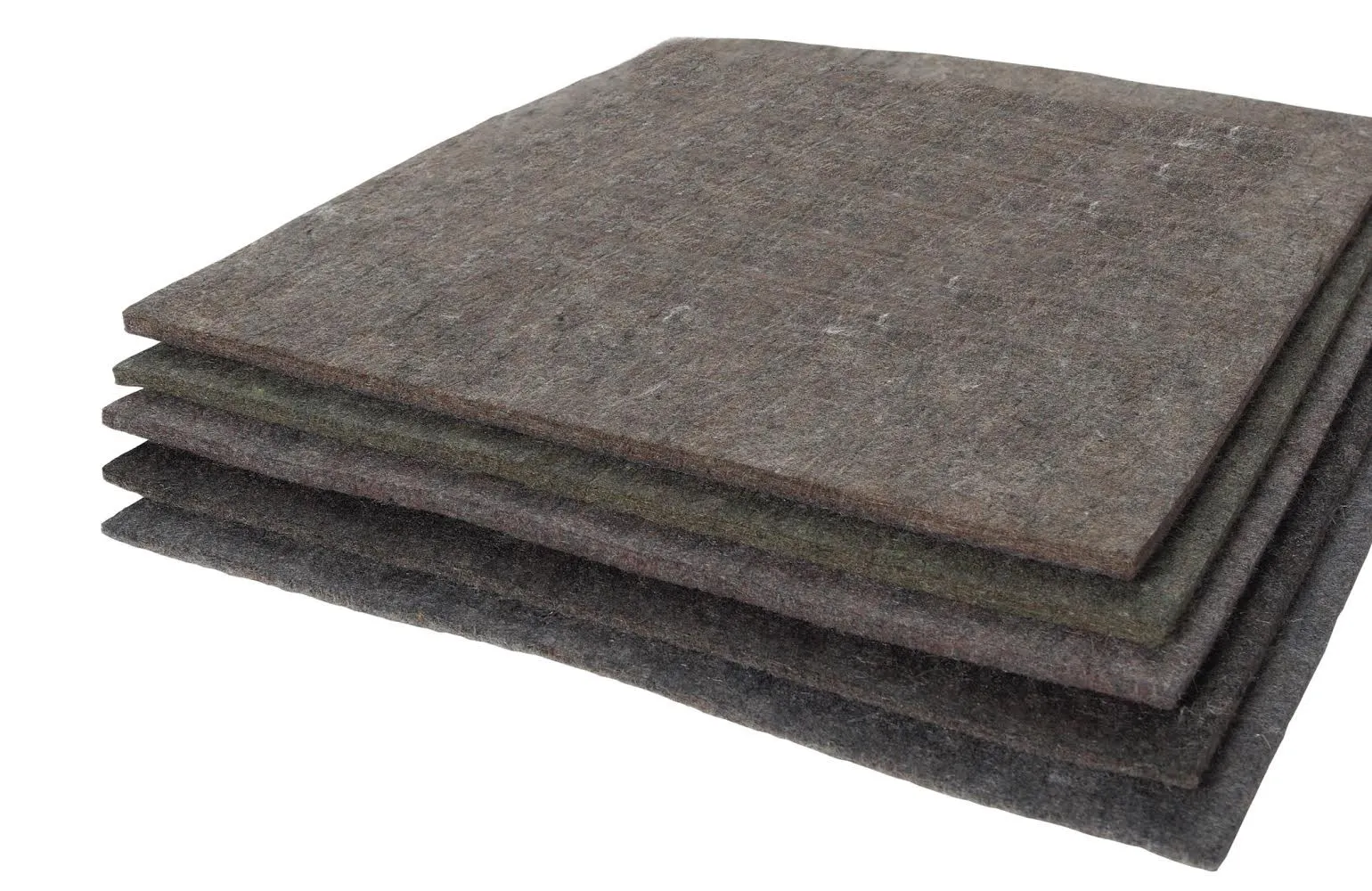

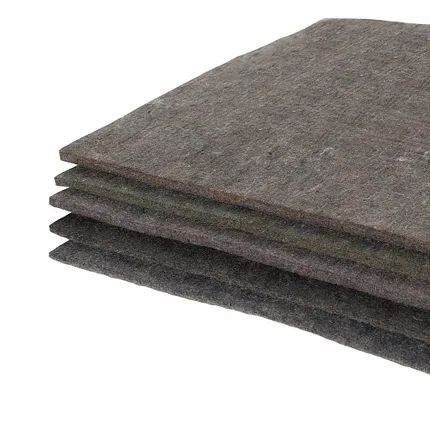

Fiber Select
Value Fiber Blend
Good | Better | Best
Style
Weight
Thickness
Density
Roll Size
yd2/Roll
Traffic Class
Warranty
Radiant Panel
Green Label Plus
Cradle to Cradle
Installation: Stretch-In installation with broadloom products
Similar durability to Fiber Touch, without the premium fiber blend that gives Fiber Touch a consistent appearance
020FS 024FS 028FS 032FS 040FS
20 oz 24 oz 28 oz 32 oz 40 oz
0.235" 0.25" 0.30" 0.3125" 0.35"
7 lbs./ft3 8 lbs./ft3 8 lbs./ft3 8.5 lbs./ft3 9.5 lbs./ft3
6' x 60' 6' x 60' 6' x 60' 6' x 60' 6' x 60'
40 40 40 40 40
Class I Class I Class II Class II Class III
10 Year 10 Year 10 Year 10 Year 10 Year
Class I Class I Class I Class I Class I
GLP012 GLP012 GLP012 GLP012 GLP012
Bronze Bronze Bronze Bronze Bronze
EcoWorx® Carpet Tile

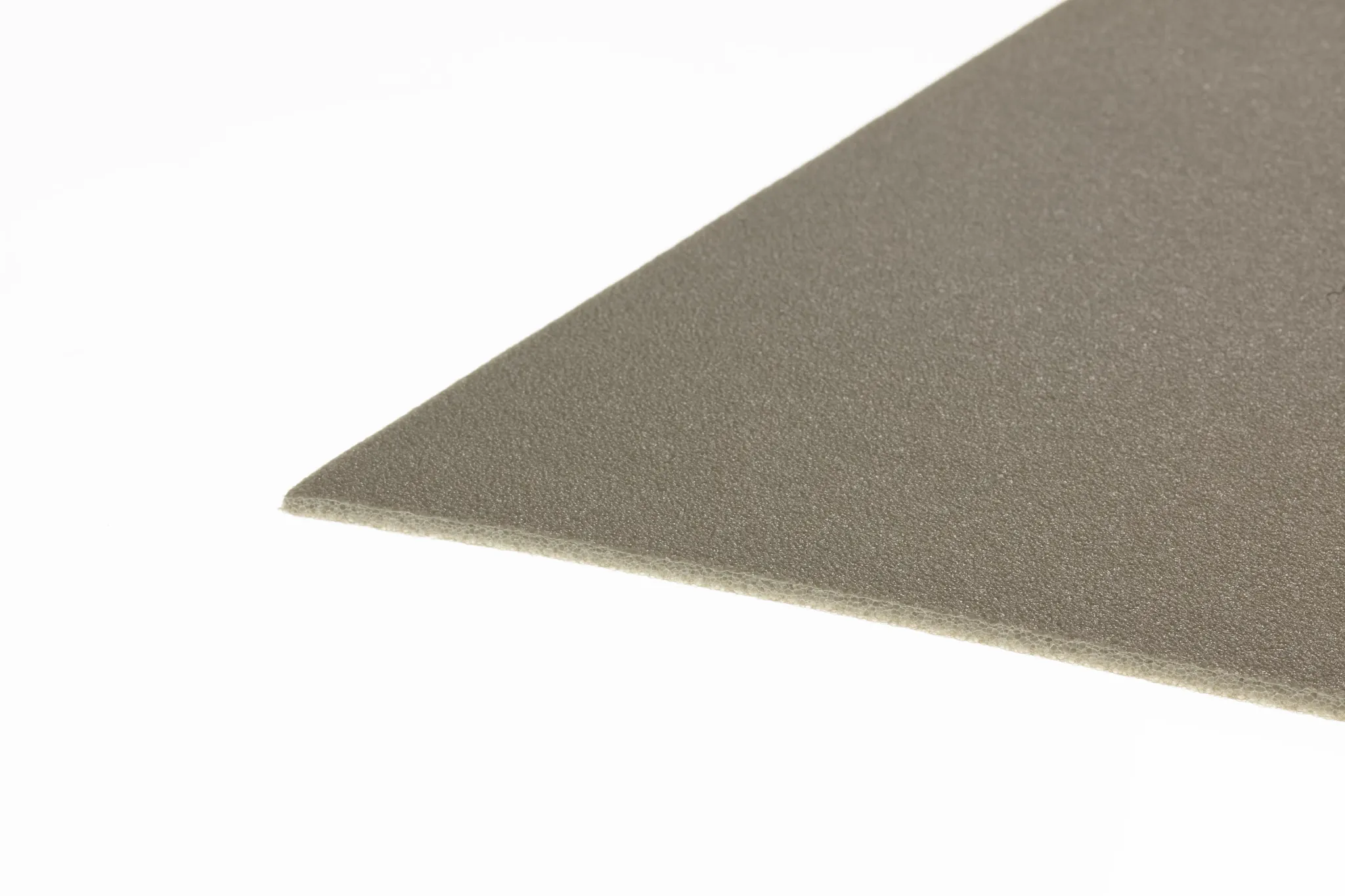

CushionWorx®
CUO34 Carpet Tile
Commercial Polyethylene Foam Cushion
Good | Better | Best
- Premium polyethylene foam cushion for EcoWorx® Tile
- Installation Double Glue
Weight 40 lbs./roll
Thickness 0.125" | 3.18 mm
Density 4.0 lbs./ft3
Roll Size 76" x 150'
1.93 x 45.72 m
yd2/Roll 105.6 yd2
Traffic Class Class II - Heavy
Warranty Limited Warranty

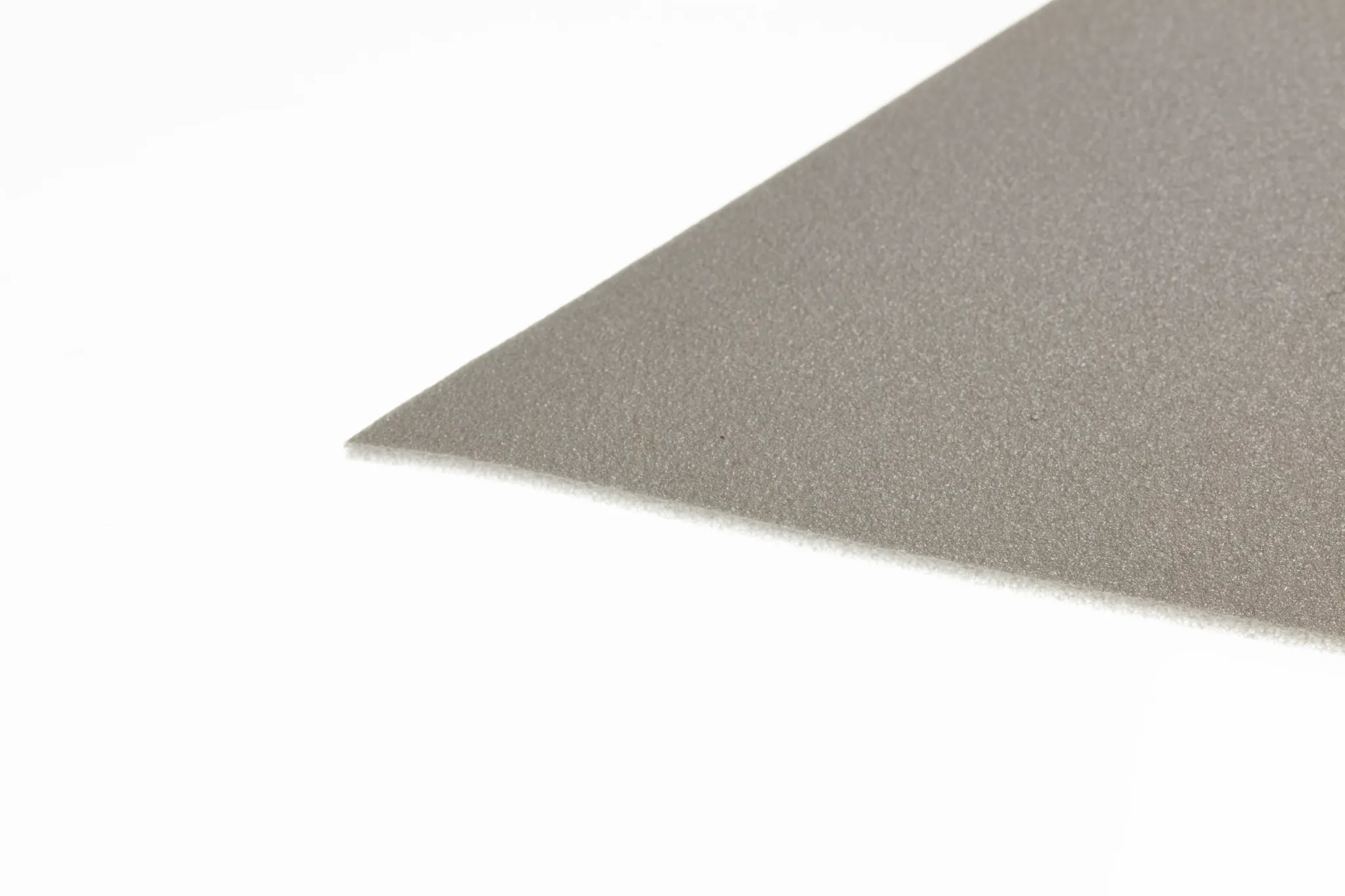

CushionWorxTM Lite
CUO24 Carpet Tile
Commercial Polyethylene Foam Cushion
Good | Better | Best
- Polyethylene foam cushion for EcoWorx® Tile
- Installation Double Glue
Weight 20 lbs./roll
Thickness 0.08" | 2.032 mm
Density 4.0 lbs./ft3
Roll Size 76" x 120'
1.93 x 36.58 m
yd2/Roll 84.4 yd2
Traffic Class Class I - Moderate
Warranty Limited Warranty
Hardwood
Natural Cork Underlayment 6mm
213DE
100% Natural Cork Underlayment
Good | Better | Best
- Use with hardwood, laminate and ceramic floors
- Installation: Double Glue installation
- Approved Adhesives: All Shaw Contract resilient/wood adhesives
Thickness 0.252" | 6.4 mm
Density 11.7 lbs./ft3 - 12.5 lbs./ft3
Roll Size 4' x 50'
15.24 x 1.219 m
ft2/Roll 200 ft2
Traffic Class Class I - Moderate
Warranty Limited Warranty

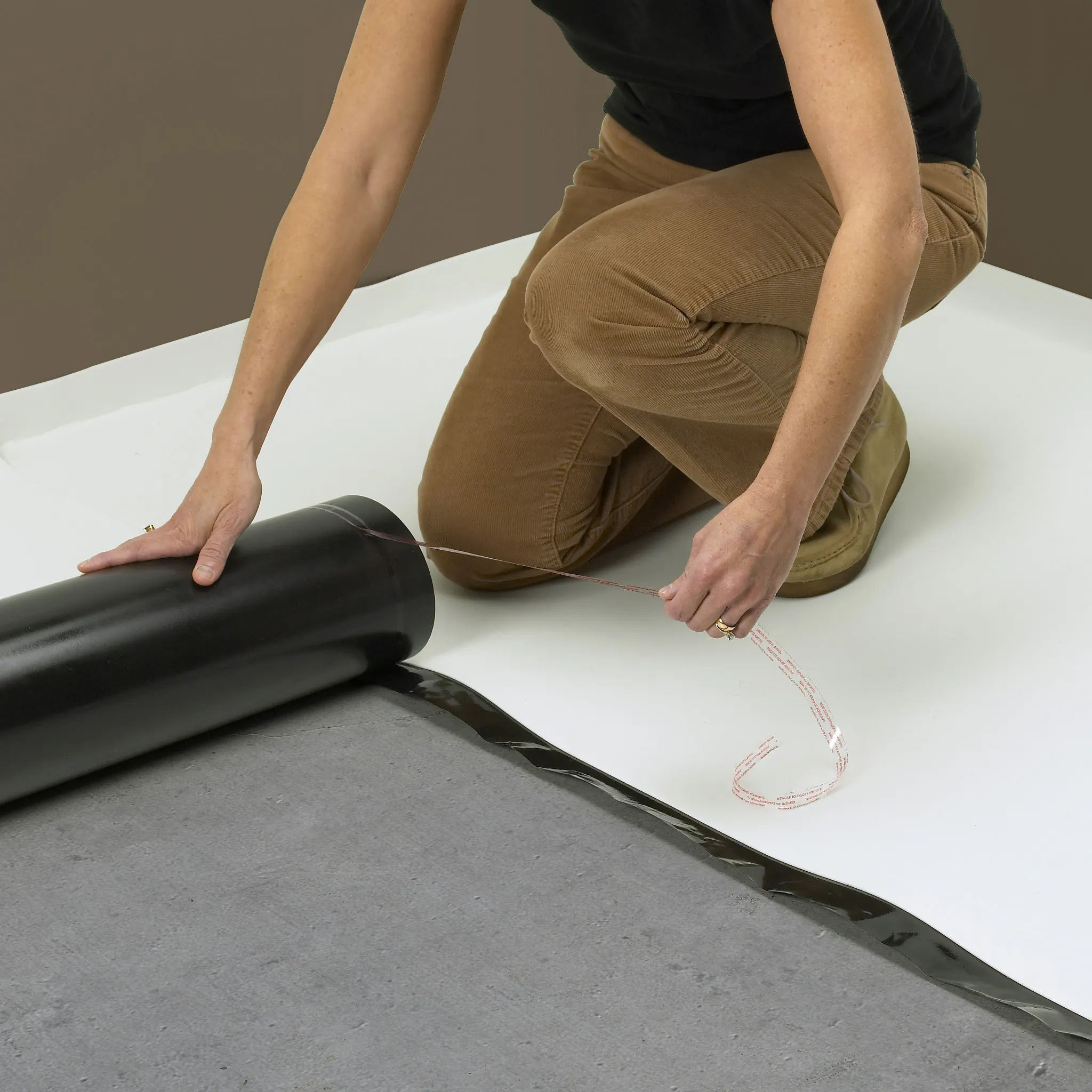

SilentStepTM Ultra
LCSSU
Acoustical Underlayment
Good | Better | Best
- Use with floating hardwood and laminate
- Attached 4 mil polyethylene moisture barrier for superior subfloor moisture resistance
- Installation: Floating installation
Thickness 0.08" | 2 mm
Density 6 lbs./ft3
Roll Size 42" x 28.5'
1.07 x 8.71 m
ft2/Roll 100 ft2
Traffic Class Class I - Moderate
Warranty Limited Warranty
Moisture Underlayments
Kovara MBX
095VS
Rolled Moisture Barrier for Concrete Floors
Good | Better | Best
- Extreme moisture protection
- 10 year limited warranty
- Up to 100% RH
- 5' x 144' | 720 ft3
- Sold by the roll
Kovara 95
094VS
Rolled Moisture Barrier for Concrete Floors
Good | Better | Best
- Extreme moisture protection
- 10 year limited warranty
- Up to 95% RH
- 5' x 144' | 720 ft3
- Sold by the roll
